2005‑2013 Corvette C6 Replacement Carpet Buyers Guide
June 17, 2025
The Corvette C6 (model years 2005 to 2013) is celebrated for its sharp styling, exposed headlamps, improved ride & handling, and the legendary LS-series V8 under its hood. This was the first generation to break from the base-only coupe, offering high-performance trims such as Z06, ZR1, and the versatility of both coupe and convertible bodies.
Why does carpet replacement matter? Over time, road vibration, engine heat radiating through the firewall and floor pans, exhaust resonation in the rear storage area, and UV exposure degrade the original carpet. Upgrading restores OEM aesthetics, enhances sound & heat insulation, and addresses shrinkage or fading issues seen in aging interiors—important for both enjoyment and customization.
Carpet Materials & Key Differences
TruVette (Original Match)
TruVette is the OEM-grade, solution-dyed nylon carpet with the authentic plush weave. ACC TruVette reproductions feature exact fit, factory-style color-molded heel pads, and serged bindings to match 2005‑2013 Corvettes
Cut-Pile & Essex Luxury Upgrades
Cutpile fibers offer a softer texture and are popular for custom builds. The Essex upgrade adds density and cushion, supporting comfort-focused restorations.
Mass Backing vs Regular
Every C6 originally featured heavy rubber mass backing molded to carpet for heat insulation, sound deadening, and maintaining molded contours. ACC reproductions preserve this to ensure proper fit and acoustical performance.
Forum users report mass-backing carpets are firmer, hold shape well, but slightly more challenge fitment around sill plates—patience is advised
Coupe vs Convertible Fitment
Convertible and coupe models have distinct floor and riser panel shapes thanks to chassis differences. These sets are tailored: front sets with risers behind seats and molded foot-wells, sold separately for coupe vs convertible
Installation Tips
- Remove seats and console for access to all fastener holes.
- Trim firewall area carefully to tuck carpet underneath; heat from engine concentrates here.
- Align seat-bracket bolt indentations for secure fit.
- Consider adding sound deadeners or foil-backed insulation beneath carpet to combat engine heat and exhaust resonance.
- Address shrinkage issues: pre-fit carpet rails prior to seating trims.
- Use 3M spray adhesive for extra adhesion along risers and edges.
NCRS Judging Considerations
If aiming for NCRS show-level quality, authentic materials and fitment are crucial. Judges check for correct mass-backing texture, mold alignment, color, heel-pad placement, and clean edge finish—exactly what TruVette reproductions by ACC provide.
Coupe vs Convertible Differences
Coupe TruVette sets include floor pans and risers tailored to the fixed roof structure. Convertible versions are designed for the folding top compartment, different rear floor angles, and bulkhead contours—order appropriately.
Explore the full range at FactoryInteriors.com:
C6 Corvette Carpet Kit Selector
Select your Corvette body style, then pick the carpet section you need. Mass Backing mirrors the factory butyl layer for heat & sound, while Poly Backing saves a little weight and cost.
| Material / Section | Coupe | Convertible | Includes |
|---|---|---|---|

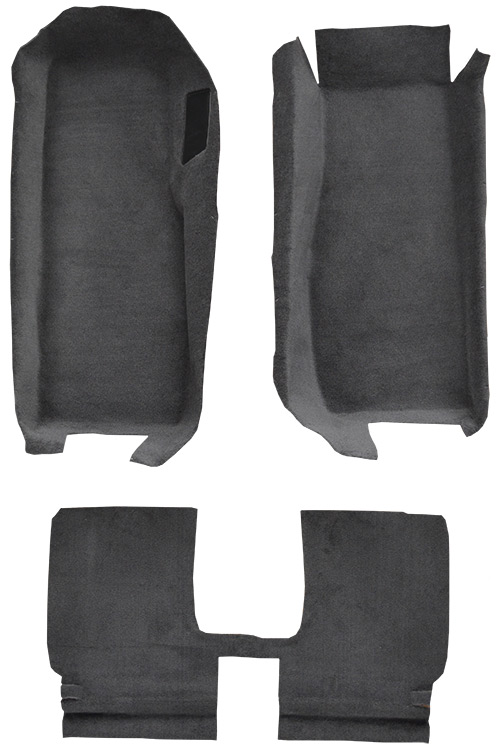

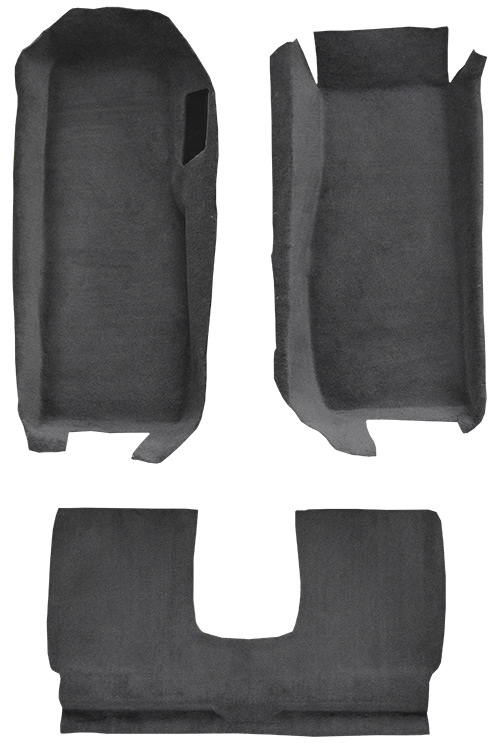

| TruVette Front · Mass Back |
 |
 |
Front Floor + Riser |
| TruVette Front · Poly Back |
|
|
Front Floor + Riser |
| Cut‑Pile Front · Mass Back |
 |
 |
Front Floor + Riser |
| Cut‑Pile Front · Poly Back |
|
|
Front Floor + Riser |

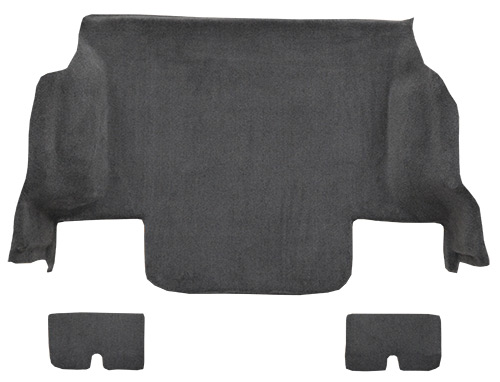

| Cut‑Pile Rear · Mass Back |
 |
 |
Rear Deck & Lid Covers |
| Cut‑Pile Rear · Poly Back |
 |
 |
Rear Deck & Lid Covers |
| TruVette Tail‑Light Cover |
 |
 |
Rear Vertical Panel |
| Cutpile Tail‑Light Cover |
|
|
Rear Vertical Panel |
